| Machine Size:: | 9.6*1.2*1.5m | Middle Plate: | 16mm |
|---|---|---|---|
| Name: | Roof Panel Roll Forming Machine | Working Speed: | 20-25m/min |
| Cutter Blade: | Cr12 | Roller Material: | GB45# Steel |
| Highlight: | color steel roll forming machine,double deck roll forming machine |
||
Hydraulic auto color steel tile type and roof panel double layer roll forming machine
1. Hydraulic auto color steel tile type and roof panel double layer roll forming machine

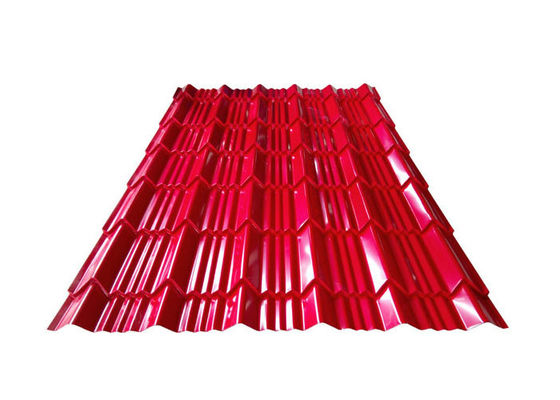

This double layer corrugated and glazed cold roof panel metal sheet roll forming machine is widely used in many kinds of industrial factory, workshop, civilian buildingsand so on , It has advantage of pretty appearance, durable using lower cost,high efficiency,reliable working and so on.
2. Hydraulic auto color steel tile type and roof panel double layer roll forming machine parameters
| Raw material | |
| Material | Colored steel sheet, galvanized steel sheet, aluminum sheet |
| Thickness of coil sheet | 0.3-0.8 mm |
| Material expand width | 940 mm/1000mm/1200mm |
| Efficiency width | 762-760 mm/840-910mm/1000-1050mm |
| Machine details | |
| Roller material | High grade no. 45 forged steel with 0.05mm hard chrome plating |
| Shaft material | High grade no. 45 carbon wrought steel |
| Cutting blade | Cr12 mould steel with quenched treatment |
| Diameter of shaft | 70mm |
| Main frame | 300 H steel |
| Forming steps |
Up layer:11 stations Down layer:13 stations |
| Productivity | 20-25m/min |
| Hydraulic station power | 5.5kw |
| Hydraulic pressure | 10-12mpa |
| Appearance size | 6500mm*1500mm*1500mm |
| Weight | 4.5 tons |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380v 50 hz 3 phase or as your requirement |
| Cut mode | Hydraulic forming after cutting off |
| Cutter materia | Cr12 heat treatment |
| Electronic control system | Plc, touch screen, encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. Business terms:
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
5. FAQ(about our roll forming machine)
1) Q: How to choose the machine,any information i need to offer?
A: You need to provide the product drawings.
2) Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3) Q: Do you provide customized?
A: Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
4) Q: What can you do if the machine broken?
A; Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5) Q: Why your price is higher than others?
A: As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.

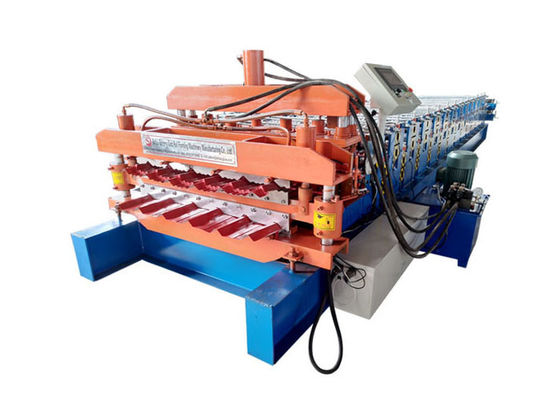

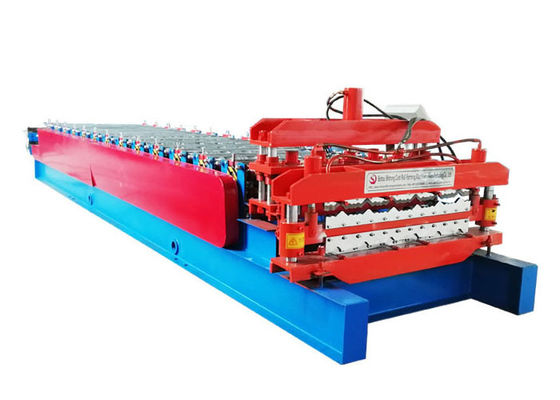

6. Roll forming machine pictures:
