Product Details:
Payment & Shipping Terms:
|
| Certification: | CE/ISO9001 | Use: | Roof, Roof/wall |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases | Motor Brand: | Lichao, Shanghai |
| Production Capacity: | 8-12m/min | Driving Method: | Electrical Motor |
| Step Of Rollers: | 15 Steps , 14 Steps | Control System: | PLC Control System |
| Tile Type: | Double Layer Roll Forming Machine | After-sales Service Provided: | Online Support |
| Weight: | 6.5T | Dimension(l*w*h): | 7500*1700*1600Mm |
| Highlight: | color steel roll forming machine,cold roll forming machine |
||
Trapezoidal And Corrugated Roof Wall Sheet Double Layer Roll Forming Machine For Metal Roofing
1. Usage And Introduction Of This Production Line
- Here is the double layer roll forming machine line, 15 rollers tation, 70 mm diameter shaft, Cr12 roller material, hydraulic cutting.
- We have passed 15 years in the field of cold roll forming machines, and we are specially in allotypic metal material roll forming machines, we already export machines more then 70 countries over the world, like Africa(Nigeria, South Africa, Morocco, Algeria, Zambia etc), Europe(Kosovo, Slovenia, Spanish, Romania, etc ), South America( Brazil, Mexico, Uruguay, Chile, Paraguay, Peru, Bolivia etc.)
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic pump station | 2 unit |
| Auto stacker | 1 unit |
2. The roll forming machine parameters
| No. | Main parameters of Double Layer roll forming Mchine | |
| 1 | Suitable to process | Colored Steel plate, galvanized board, Aluminum plate |
| 2 | Control system | PLC control |
| 3 | Productivity |
Up layer: 15-20m/min, Down layer: 15-20m/min |
| 4 | Width of the raw material | 1000mm |
| 5 | Thickness of the plate | 0.3-1.0mm |
| 6 | Rollers |
Up layer:15rows, Down layer:15 rows |
| 7 | Diameter of the rollers | Φ70mm |
| 8 | Rolling galvanization thickness | 0.05mm |
| 9 | Material of the cutting blade | Cr12 |
| 10 | Dimension | 8.7*1.5*1.5m |
| 11 | Weight | About 6T |
| 12 | Voltage | 380V 50Hz 3phases |
| 13 | Power | 4+4kw |
Our equipment keeps a foothold in the domestic market, at the same time, we've developed international market in many countries. Having exported our equipment to Europe, Africa, South America, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, we have received high praise from the foreign customers.
"The quality first, The prestige first" is the service aim of our company, we wish to customize the best machines for customers. So all stuff from SHITONG welcome anyone who are interested in our machines come to investigate and talk about cooperation.
4. After-sales service
(1) Once you paid the deposit, we will start the production as soon as possible. When the machine is finished, you can come to check the machine, we will arrange your accommodation and relative schedule. If you don't come, we can test the machine and send you test video. It's no problem.
(2) Our machines have one year guarantee, within one year, if the machine parts has some problem, we will be in charge of the repairing or replace. Also we will deliver the customer some spare parts together with the machine when loading the machine.
5. FAQ
5.1:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
5.2:- Can you make the machine according to my design or photo type?
- Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
5.3: How can we be assured that you will deliver us quality machine with spare parts?
-1. Customers to send the technical people to our factory for checking the quality.
-2. We can send the technicians to the buyer`s factory for the installation of the machine.

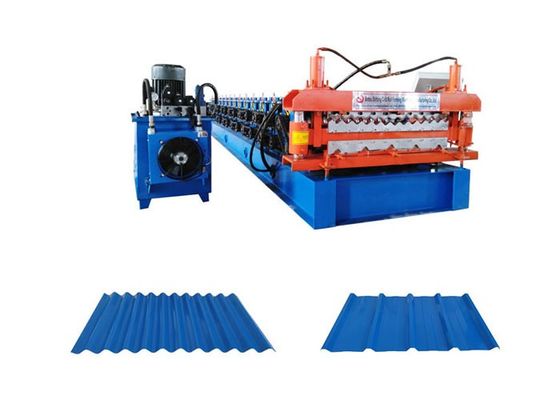

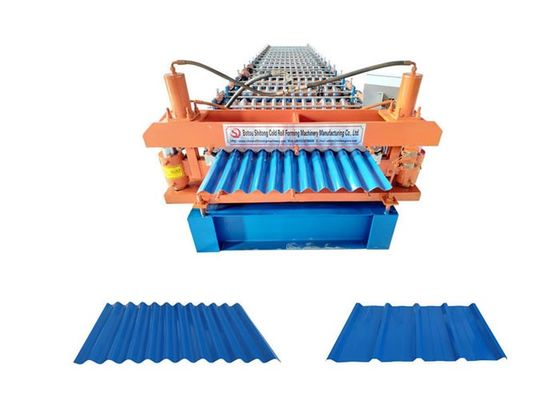

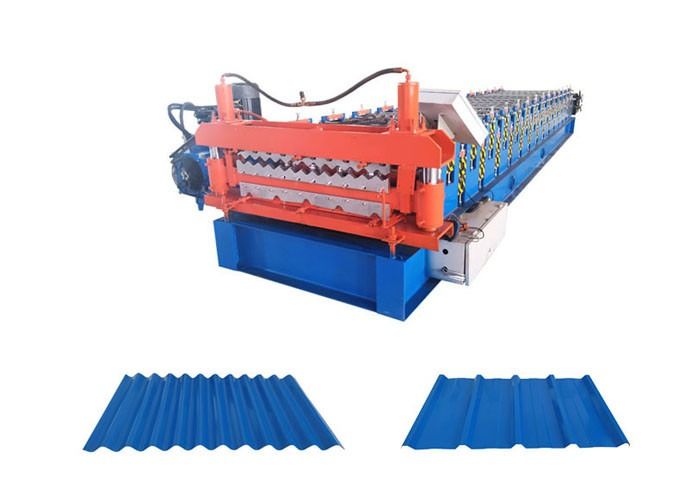

6. Roll forming machine pictures:
