Product Details:
Payment & Shipping Terms:
|
| Machine Size:: | 7.6*1.4*1.5m | Thickness Of Matrial: | 0.3-0.8 Mm |
|---|---|---|---|
| Forming Steps: | 15 Steps/14 Steps | Drive System: | Hydraulic Motor Drive |
| Name: | Metal Roof Making Machine | Usage: | Steel Roofing And Wall Panel |
| Highlight: | 1200mm roof panel forming machine,galvanized iron roof panel forming machine,1200mm portable roof panel rollforming machine |
||

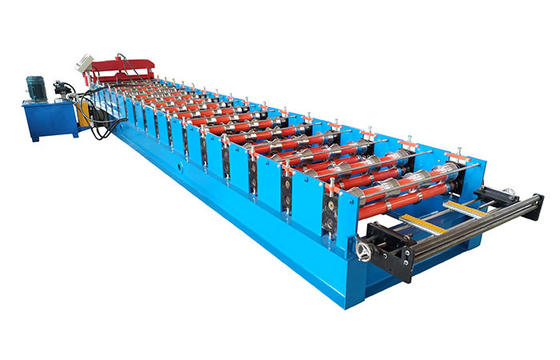

High speed low price trapezoidal metal sheet roll forming machine

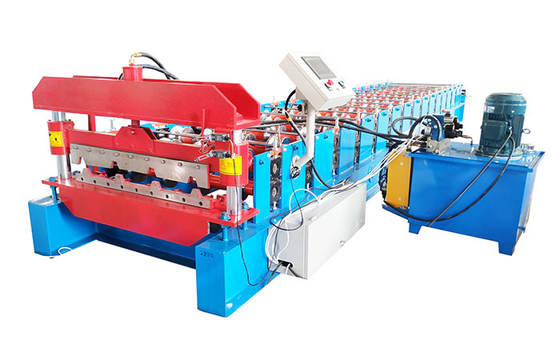

Machine is design for color steel roof sheet roll forming,the machine working speed is about 15m per minute,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table,total power is 8kw.
| Machine components | Technical parameters |
| Decoiler | 5 or 10T,manual or hydraulic powered. |
|

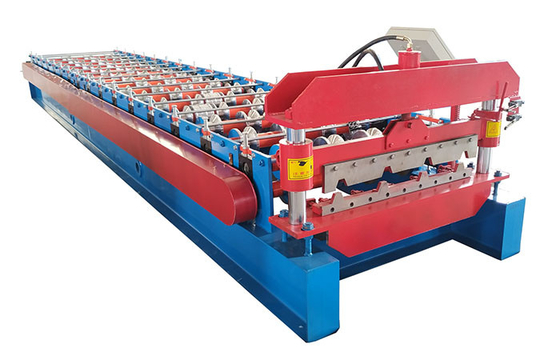

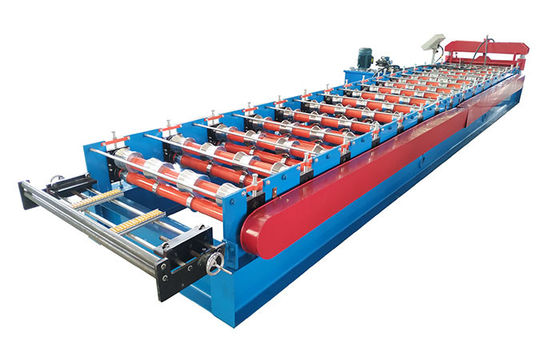

Main forming machine
|
16 stations forming rollers,chain drive.shaft diameter 70mm |
| Hydraulic pump | 4kw |
| Control box | Delta PLC and frequency. |
| Run out table | Manual operate ,Height adjustable |
| Tool box |
For operate tool and spare parts. |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
Size and Weight Information
| Name | Decoiler | Machine | Control box | Pump | Runout table | others |
| Size | 1*1*1.2m | 6.5*1.45*1.2m | 1*0.6*0.5m | 1.1*0.8*0.9 | 3*1.2*0.45 | |
| Weight | 200kg | 3500kg | 30kg | 40kg | 80kg |
1.The whole line working speed is about 15m/min.,max working speed could be 30 meters per minute.
2.Feeding material width should be confirmed before machine design .the width are changeable,
3.Material thickness normal range are 0.3-0.8mm.if you have any special request on material thickness,we should discuss in advance .

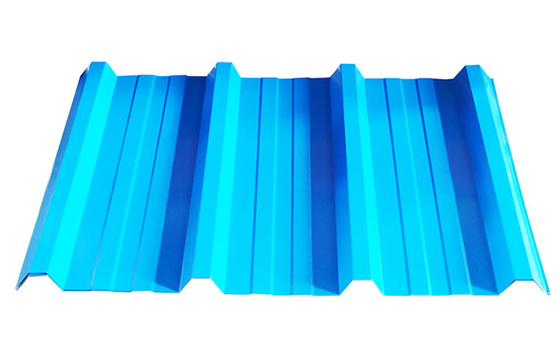

4.Both three and four waves are suitable for the line.we can design the machine based on buyer's profile drawing.
5.Final sheet embossing is available.we can different embossing rollers on various pattern and drawings.

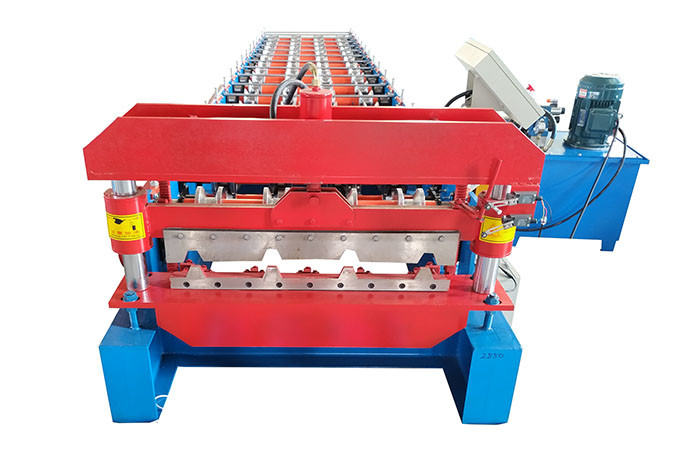

6.Hydraulic pre-cutting are provided.
7. roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
8. Comapny advantage:
In Botou, we start the pressure roll forming machine export business from 2008.
As a manufacturer we are specialized in all kinds of roll forming machine, we are not machine supplier, we are a roll forming solution provider.
Provide best price,good quality and fast delivery.
1. Customers` Design ,Size,Color&Logo are accepted.
2. With 20 years professional manufacture experience
3. Prompt Delivery&Competitive Price
4. Main markets: Middle East, Europe, North America, Africa,Southeast Asia.
5. After-sales service:
(1).We provide the technical support for whole life of our machines.
(2).If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should
take all the cost, including visa,roundtrip ticket etc.
