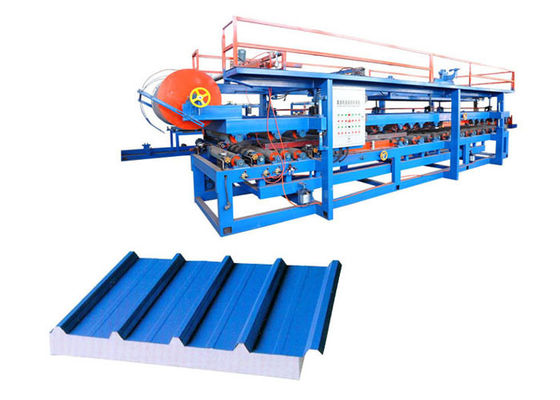

EPS Sandwich Roof And Wall Panel Roll Forming Machine Fully Automatic

EPS Sandwich Roof And Wall Panel Roll Forming Machine Fully Automatic
EPS Sandwich Roof And Wall Panel Roll Forming Machine Fully Automatic
video play

Large Image :  EPS Sandwich Roof And Wall Panel Roll Forming Machine Fully Automatic

Product Details:
Place of Origin: Cangzhou, China
Brand Name: SHITONG
Certification: ISO,CE
Model Number: 960
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 28000
Packaging Details: Loading container
Delivery Time: 40-60 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Thickness Of Matrial: 0.3-0.8 Mm Name: Sandwich Panel Machine
Usage: Floor And Roof Color: As Required
Voltage: As Required
Highlight:

0.3mm Wall Panel Roll Forming Machine

,

0.8mm Wall Panel Roll Forming Machine

,

PLC Control wall panel forming machine

Fully Automatic EPS sandwich roof and wall panel roll forming machine



No. Item Unit Parameter Remark
1





Suitable panel material

 Type   Color coated steel plate, aluminium plate
Plate strength MPa ≤350
Plate Thickness mm 0.4-0.8
Plate width mm ≤1200 According to the shape of panel
Coil inside diameter mm 500,600
Coil weight T 5
2 Suitable core materials   Rock wool, EPS As per customers' requirement
3 Panel length m 3-15
4 Panel width mm 950-1200 According to the shape of panel
5 Panel thickness mm 50-250
6 Working speed m/min 1-3 Adjustable


7 Electric control system   Industrial computer PCL frequency control According to design requirement
8 Length of compound part m 7.5
9 Total power Kw About 42
10 Outline dimensions(LXWXH) m

40*3.6*3.3





Essential details
Applicable Industries:
Building Material Shops, Construction works , Tile Making Machinery
Weight (KG):
3000
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1.5 years
Core Components:
报警锁
Place of Origin:
Hebei, China
Brand Name:
ZD
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Fully Automatic EPS sandwich panel roll forming machie
Raw material:
Steel, Galvanized Steel
Usage:
Building
Control system:
PLC(imported Brand)
Forming Roller material:
45# Forged Steel with hard chrome coated
Forming Shaft material:
45# Steel Outer Diameter:70mm
Cutting blade material:
GCr12MoV Frequency Quenching
Number Of rubber Rollers:
36
Rubber Roller:
180mm
Quantity(sets) 1 - 1 >1
Lead time (days) 15 To be negotiated



Machine pictures:

EPS Sandwich Roof And Wall Panel Roll Forming Machine Fully Automatic 0EPS Sandwich Roof And Wall Panel Roll Forming Machine Fully Automatic 1EPS Sandwich Roof And Wall Panel Roll Forming Machine Fully Automatic 2



Customized shape profile panel metal roll forming roof sheet making machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.

When you choose roof sheet making machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!
  1. No. Name Parameters
    1 Composite De-coiler 1
    2 Main Machine For forming machine 1
    3 Main Machine For Compositing 1
    4 Control System(PLC) 1
    5 Cutting System 1
    6 Run out table 1
    7 Panel Thickness 50mm-250mm
    8 Working speed 1 to 5m/min ( adjustable)
    9 The output 1000 -1500 sqm / 8 hour
    10 working temperature 32 -36 degree
    11 Control mode PLC and touch screen
    12 Power supply 380V, 3-phase, 50-60Hz
    13 Total power 32KW
    14 Size 35m×3m×2.5m
