1000mm effective width floor steel metal deck roll forming machine line for building construction
1. Usage And Introduction Of This Production Line
The complete floor deck roll forming machine includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. The users can set order as per their requirement to produce the special pieces and length products. This machine line can work automatically by PLC control system. It is easy to operate and running stably.
The components of the roll forming machine line includes:
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 2 unit |
| Auto stacker | 1 unit |
2. The roll forming machine parameters
| No | Item | Parameter |
| 01 | Material feeding width | 925~1250mm |
| 02 | Material thickness | 0.8~1.3mm |
| 03 | Uncoiler | Manual Uncoiler |
| 04 | Loading weight | 5ton |
| 05 | Forming speed | 8-15m/min |
| 06 | Forming Steps | 26~35 stations |
| 07 | Shafts materials | 45# high quality steel |
| 08 | Shafts diameter | 76mm |
| 09 | Roller materials | 45# high quality steel, hard chrome coated 0.05mm |
| 10 | Transmission | Chains-sprockets |
| 11 | Main motor power | 2x11kw |
| 12 | Cutting blade | Cr12 with quenched treatment 60-62 |
| 13 | Hydraulic power | 4kw |
| 14 | This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen | |
| 15 | Length cut Accuracy | ±1mm |
| 16 | PLC control system | Omron Japan |
| 17 | Frequency converter | TAIAN |
| 18 | Screen | TouchWin |
| 19 | Voltage | 380V/50HZ/3Phase |
| 20 | Total weight | Approx 15t |
| 21 | Overall dimensions | 15600x1500x1300mm |
BOTOU SHITONG MACHINERY MANUFACTURING CO.,LTD.(hereinafter referred to as SHITONG) is founded in 2001 and specialized in designing, manufacturing, installation, debugging kinds of Metal Panel Roll Forming Machines. SHITONG is a private enterprise with many years’ experience in this field. We have developed many new style Profile Forming Equipment, which enriches our products, makes our machinery more reasonable, artistic and practical. Therefore, we obtain the consistently high praise of new and regular customers.
4. After sales service of the roll forming machine production line
1>. Free technical support and free accessories supply.
2>. Engineer available to service machinery overseas.
3>. One year warranty is provided.
4>. Long life technical guidance for free.
5>. We always offer technical support, quick response, all your inquire will be replied in 24 hours.

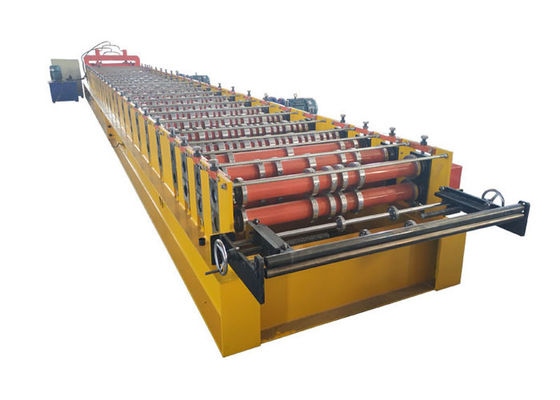

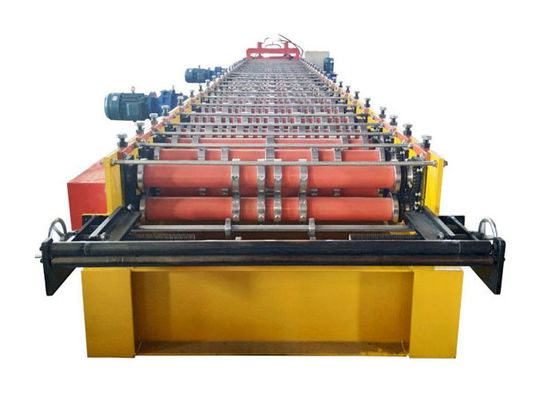

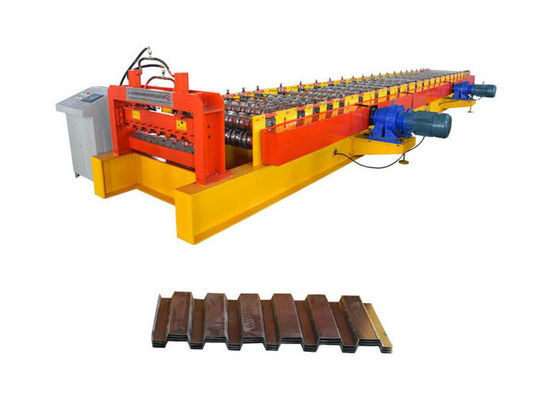

5. Roll forming machine pictures:
6. FAQ
Q1, We bought your roll forming machine line, but we couldn't install and debug it?
A1, Don't worry about that, when finished the machine, we will send you the manual book which shows you how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.
Q2, How to maintenance?
A2, If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
Q3, How many workers operate this machine to manufacture?
A3, Only 1-2 worker is enough, the machine line is full automatic with PLC control system. After you set the order, the machine can produce automatically.
