Product Details:
Payment & Shipping Terms:
|
| Machine Size: | 9.6*1.2*1.5m | Machine Color: | Blue And Orange |
|---|---|---|---|
| Material: | Galvanized Coil | Usage: | C Purlin Making |
| Machine Weight: | 7 Tons | Voltage: | 380V 50 Hz 3 Phase |
| Highlight: | purlin making machine,purlin roll former |
||
C and U shape purlin roll forming machine with one cutter for all size
1. C and U shape purlin roll forming machine with one cutter for all size
Roll forming, also spelled rollforming, is a type of rolling involving the continuous bending of a long strip of sheet metal (typically coiled steel) into a desired cross-section. The strip passed through sets of rolls mounted on consecutive stands, each set performing only an incremental part of the bend, until the desired cross-section (profile) is obtained. Roll forming is ideal for producing constant-profile parts with long lengths and in large quantities
2. C and U shape purlin roll forming machine with one cutter for all size parameters
| Raw material | |
| material spec | sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 1-3mm |
| Machine details | |
| roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | High grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70 mm |
| forming steps | 12 rows |
| productivity | 15-20 m/min |
| hydraulic station power | 22 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| appearance size | 7500mm*1150mm*1510mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. FAQ (about our roll forming machine)
Q1:What is the MOQ?
A:For roll forming machine,the MOQ is one set.
Q2:Could you design the machine for me?
A:Yes,we have professional team of engineers and are able to design and product roll forming machine as your requestment. Or if you have own drawings,we can design it as your drawings.
Q3:Are you trading company or factory?Can we visit your factory?
A:We have our own production line and factory.Warmly welcome to our factory. Once we have your schedule, we will arrange the professional sales team to follow up your case.
Q4: What's your after-sale service?
A: We'll provide engineer overseas service to help you install and debug the machine,in addition,free replacement of parts in one year warranty.
Q5: How is your Payment Term?
A:T/T,L/C ,Western Union
Q6: What’s your delivery time?
A:Normally it is about 45 days, but we will delivery as soon as possible

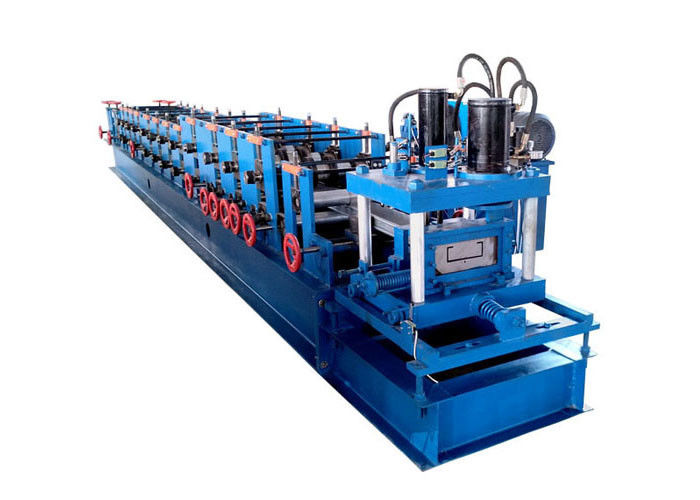

5. Roll forming machine pictures:
